Skylotec

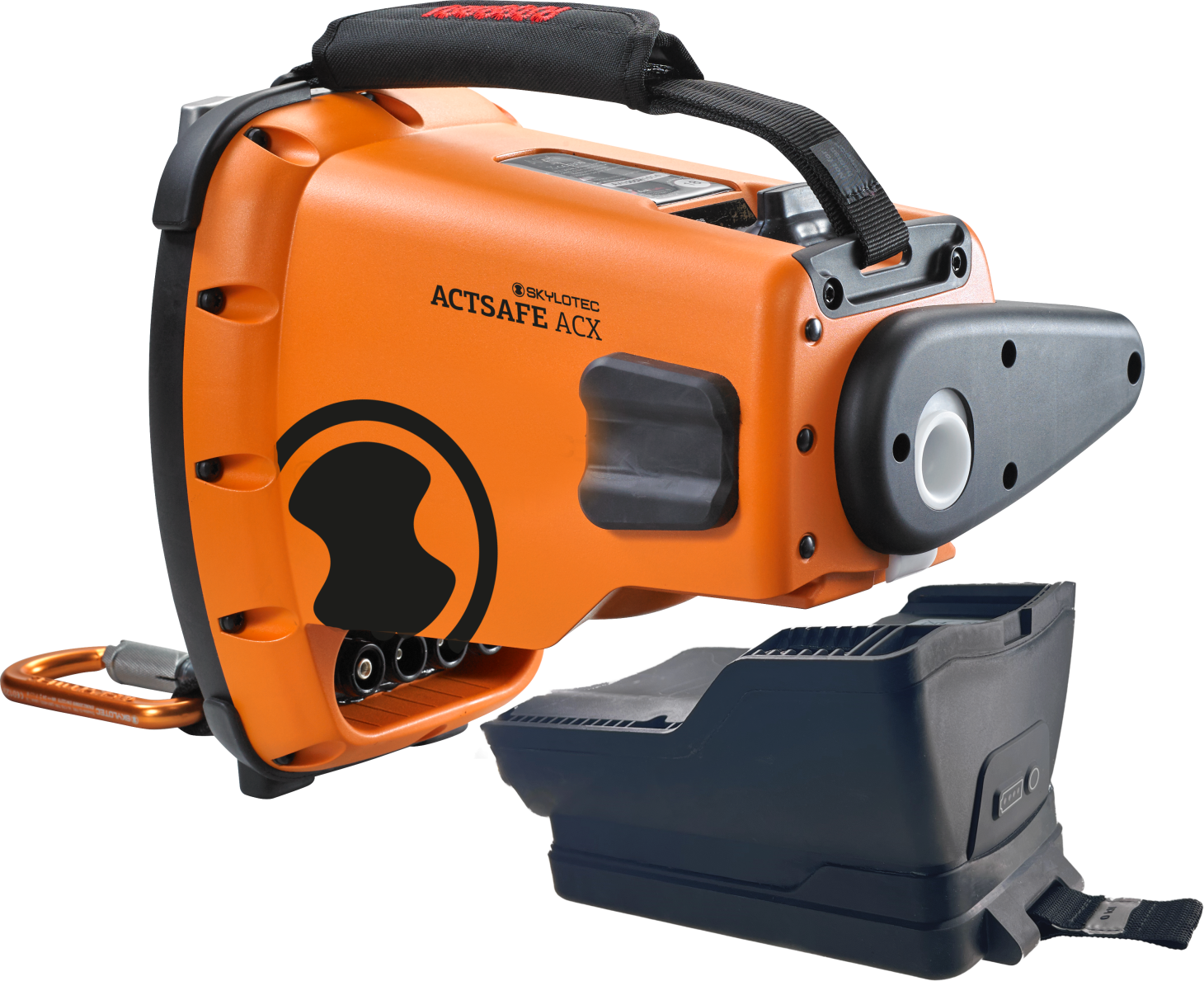

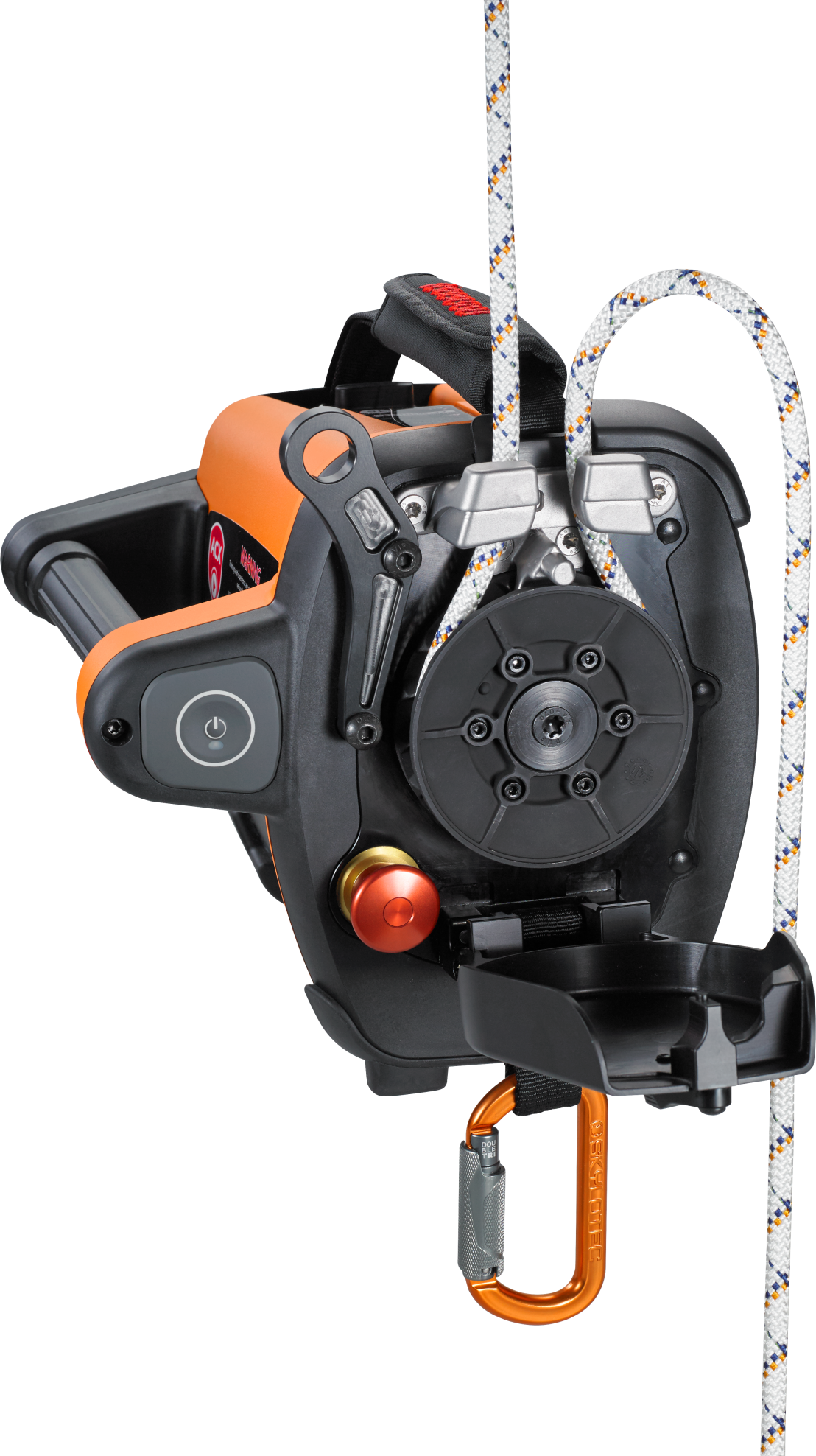

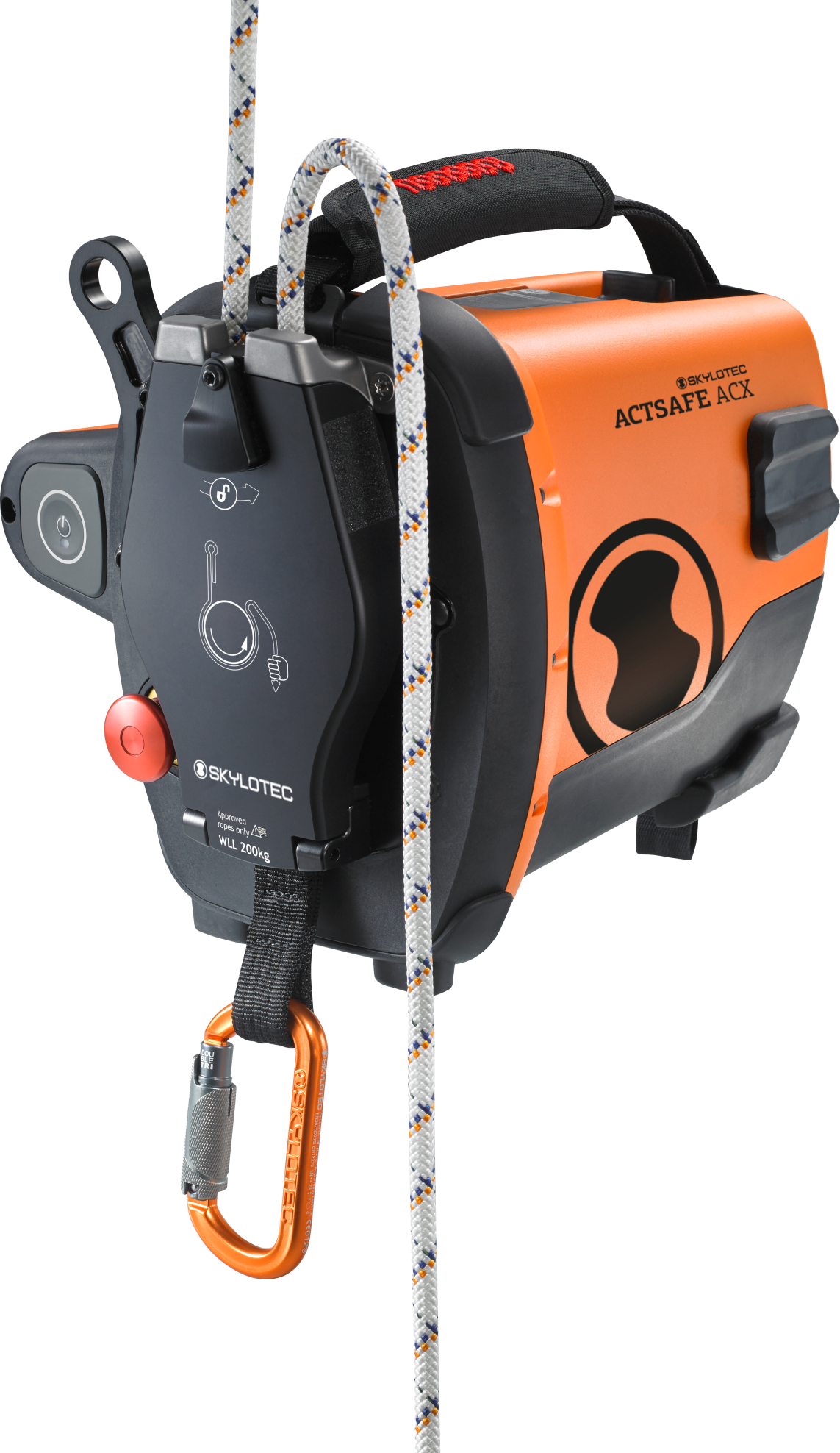

Actsafe ACX Power Ascender

The ActSafe ACX is a high-performance power ascender engineered for vertical access in demanding sectors such as offshore operations, energy supply, construction, and large-scale building maintenance. Designed to support heavier loads and longer working durations, it features a high-capacity dual-battery setup and extended operating range. Delivered as a complete kit with two batteries, a charger, and remote control, the ACX streamlines both routine maintenance and emergency response operations—reducing reliance on scaffolding or lifting platforms.

Size available:

No items found.

Webbing Connector:

Webbing Connector

No items found.

Color:

No items found.

GET A QUOTATION

FEATURES

Learn more

High performance system: Ascend up to 24 m/min with dual battery support
Load capacity: Lifts up to 220 kg (up to 2 users)
Battery-powered: Comes with 2 high-capacity batteries + charger for extended use
Remote control range: Up to 150 m
Extended range: Up to 550 m travel distance on one battery at 100 kg
Continuous rope distance: Up to 520 m
Dust and water resistant: Certified to IP55 for reliable use in outdoor conditions
AC power compatible: Can operate via direct power supply
Operating time per battery: Approx. 20 minutes under 100 kg load

‍

TECHNICAL INFORMATION

Learn more

Application areas: Offshore, Energy supply, Construction, Advanced building maintenance, Working on towers, Rescue
Battery range at 20° C & 100 kg load : 550 m
Charging time: 90 minutes
Emergency descent function: Yes
Emergency stop function: Yes
Energy source: Removeable Battery, POA-004 power supply
Max. ascent rate: 24 m/min
Max. noise level 76 dB(A)
Maximum compatible rope diameter: 11.00 mm
Maximum descent speed: 25 m/min
Maximum temperature: 40 °C
Min. ascent rate: 1 m/min
Minimum compatible rope diameter: 11.00 mm
Minimum descent speed: 1 m/min
Minimum temperature: -10 °C
Remote control range: 150 m
Underwater operations: No
Water dust resistance: IP 55
Working Load Limit: 220 kg
Material: Aluminium, Nylon, Steel
Number of Rechargeable Batteries: 2
Product height 42.00 cm
Product length 63.00 cm
Product width 37.00 cm
Colour: Orange
Customs tariff number: 84253100
Gross weight: 30.00 kg
Net weight: 30.00 kg
Regional Charger: EU/UK
