CAPTO is an intuitive device that combines a multi-functional rope grab, high-efficiency pulley, and integrated becket for easy hauling and ascending. Built around an innovative V-groove Cam, CAPTO is designed to handle rescue loads while providing force-limiting overload protection.

Size available:

Webbing Connector:

Webbing Connector

Color:

GET A QUOTATION

FEATURES

Learn more
  • Force-limiting V-groove cam provides built-in overload protection for safer operations under load
  • Installs quickly on both tensioned and un-tensioned lines, without the need for knots or hitches

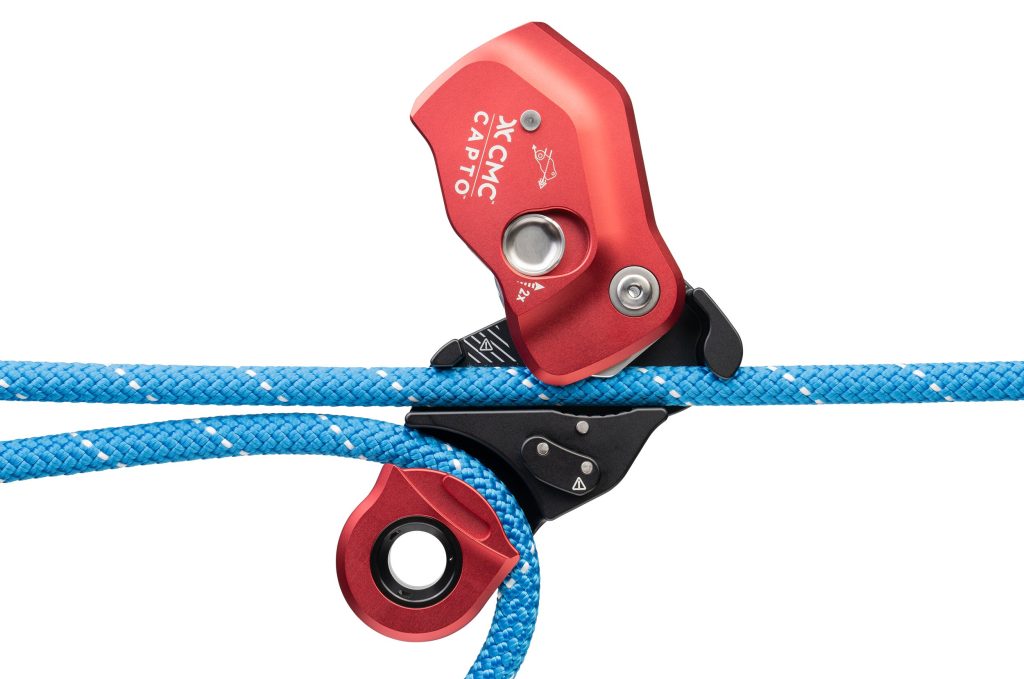

  • One-handed opening design allows fast access to internal components for efficient rigging

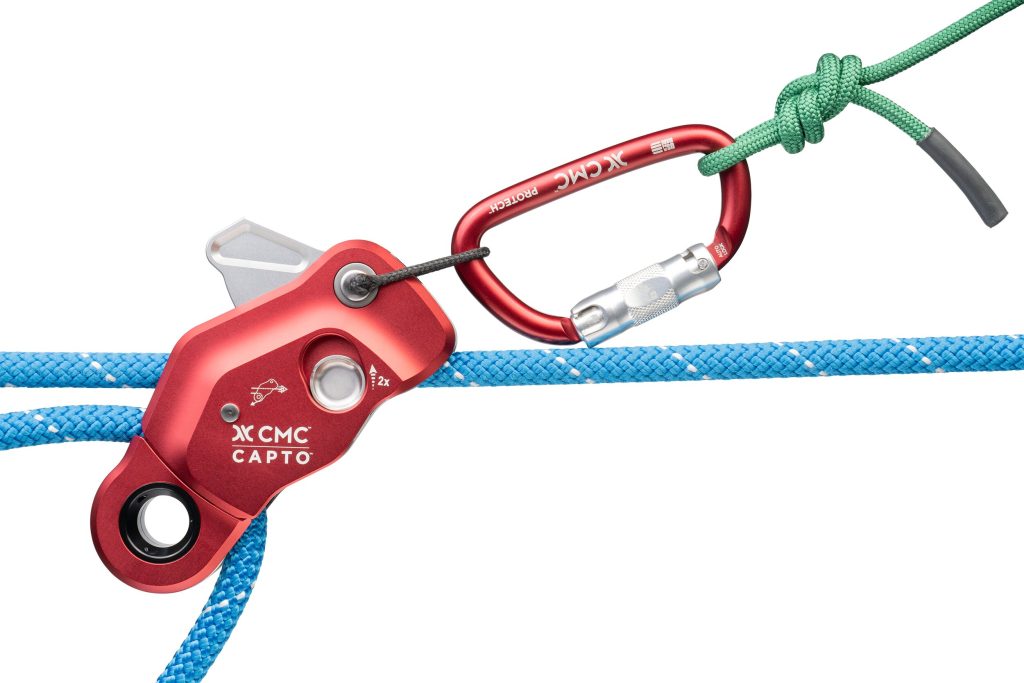

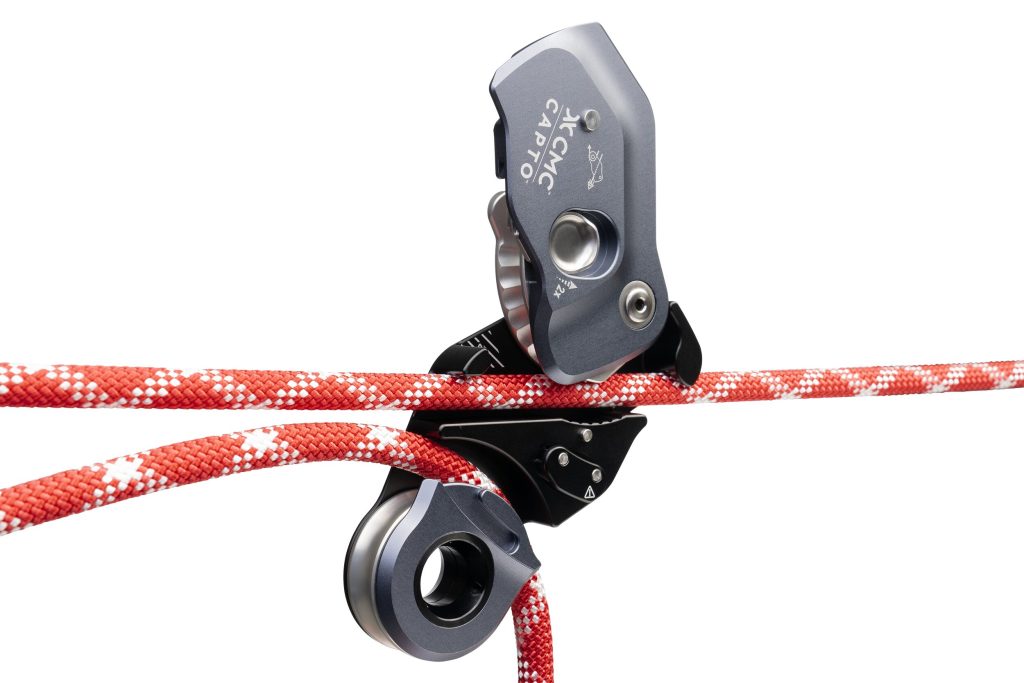

  • Builds efficient mechanical advantage (M/A) systems, with smooth progression from 3:1 to 5:1 setups
  • Releases and resets easily, even after high loading, making it well-suited for rescue scenarios
  • Travels down the rope in vertical systems, allowing quick resets and maximising hauling efficiency

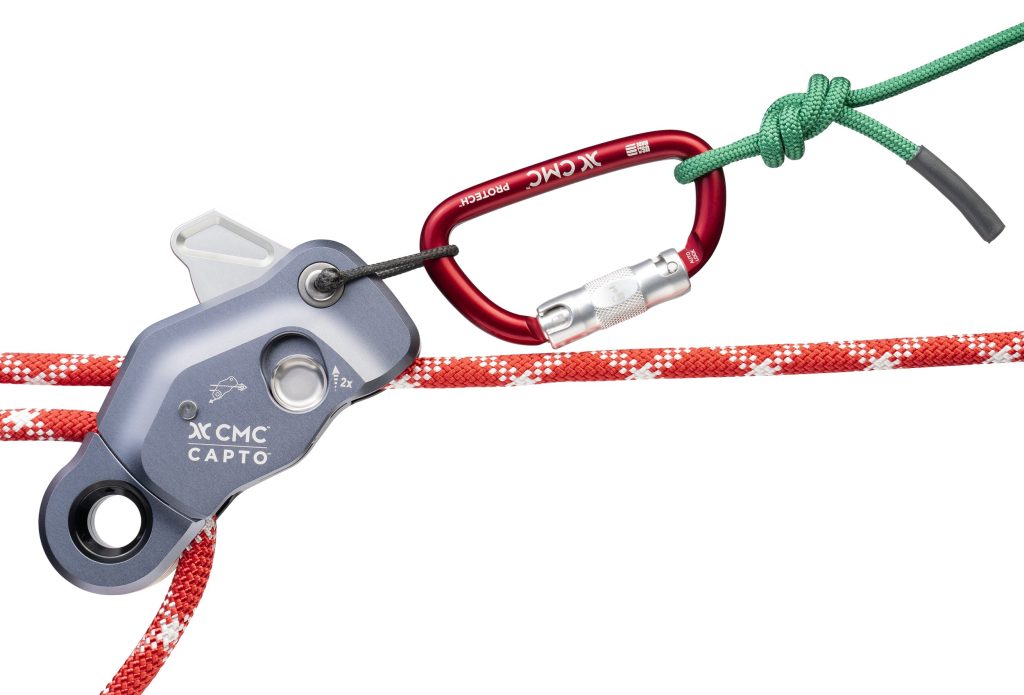

  • Integrated becket enables direct connection of M/A components, lanyards, and foot loops

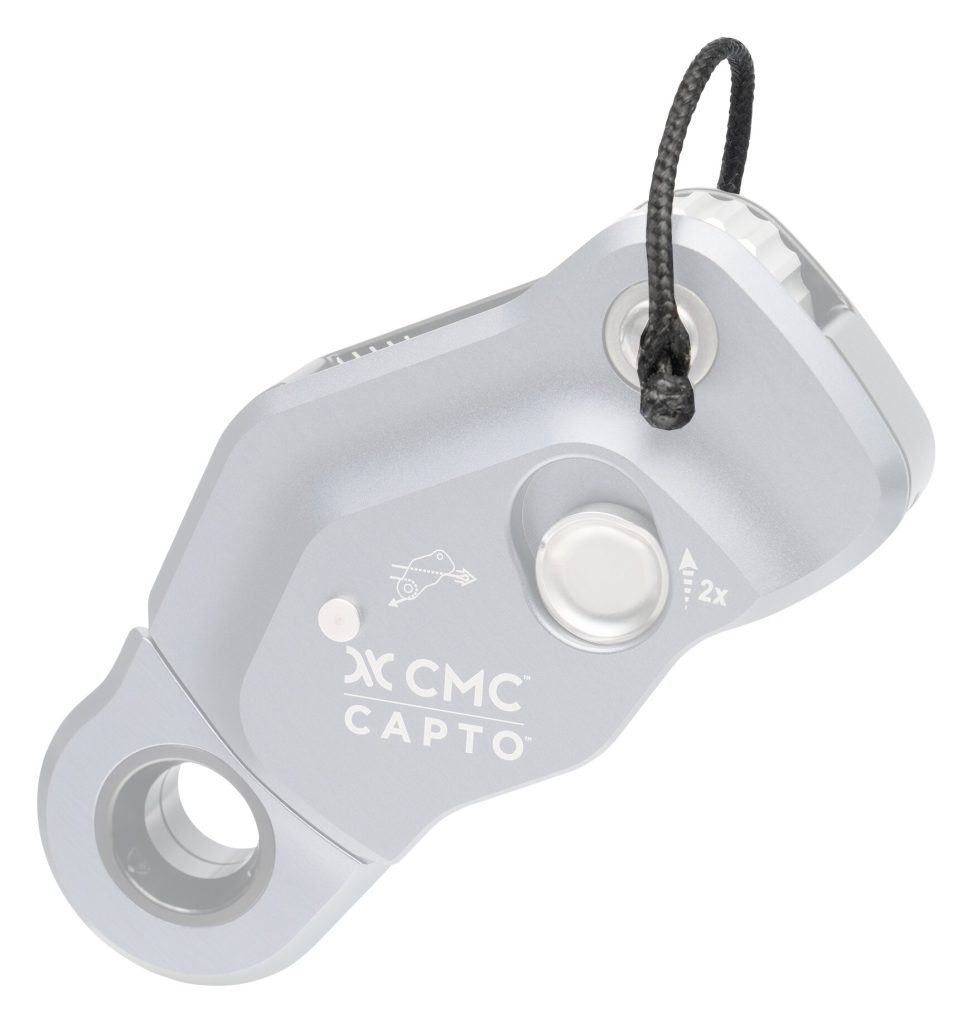

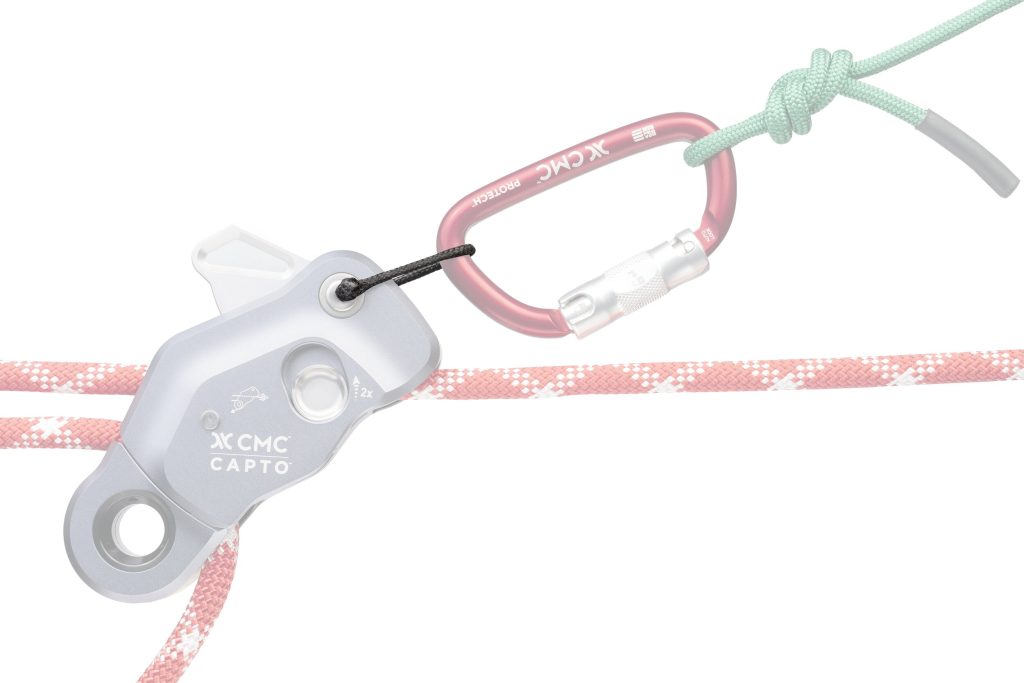

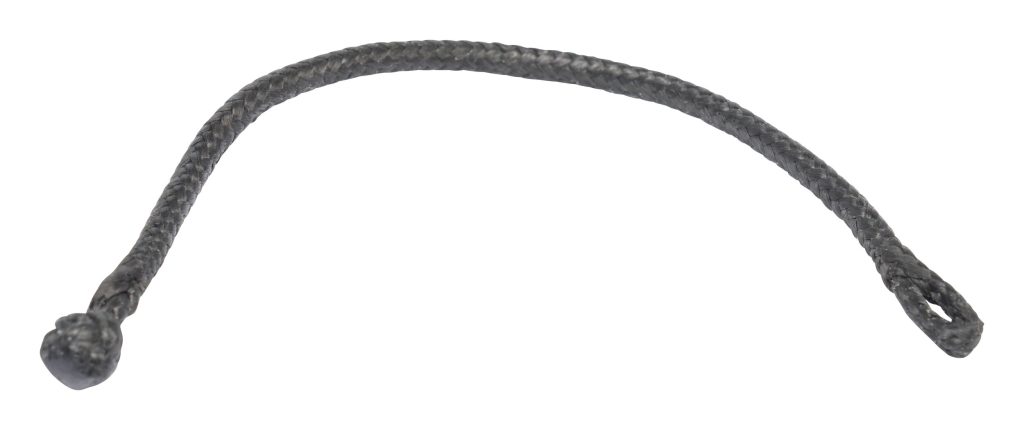

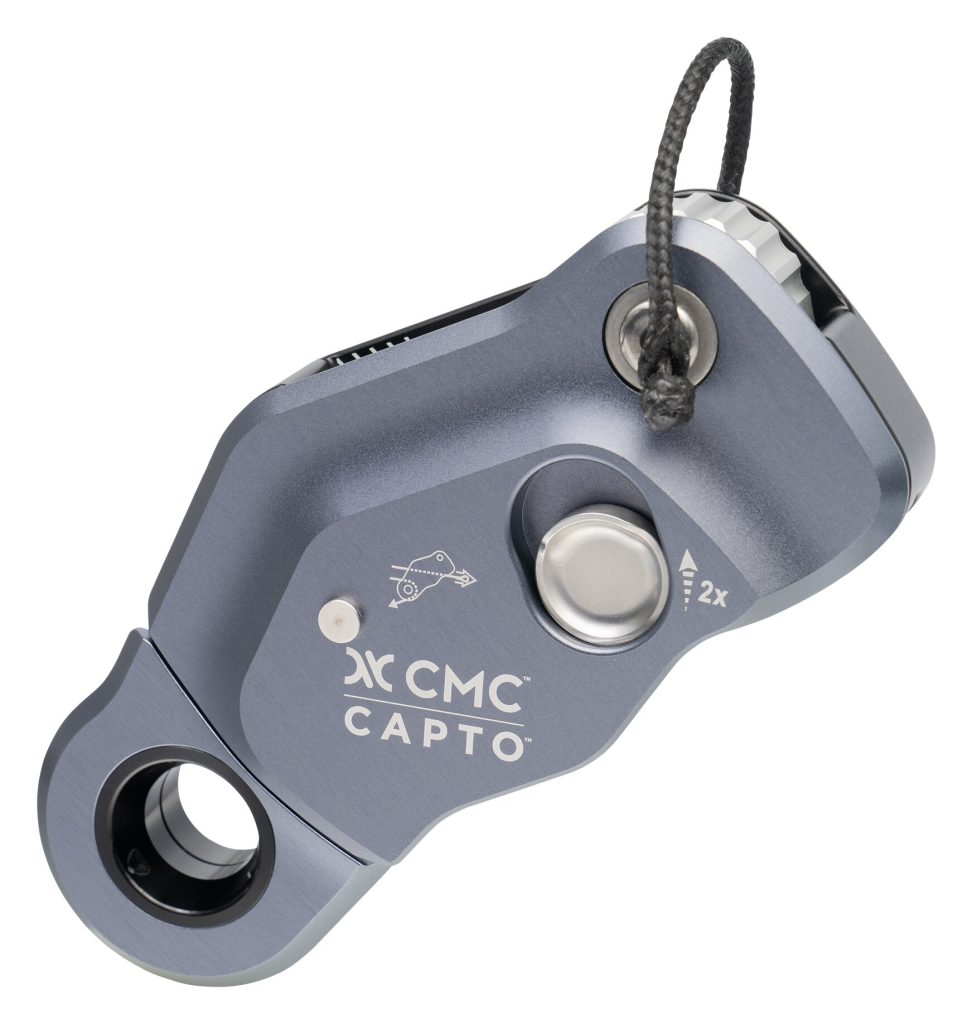

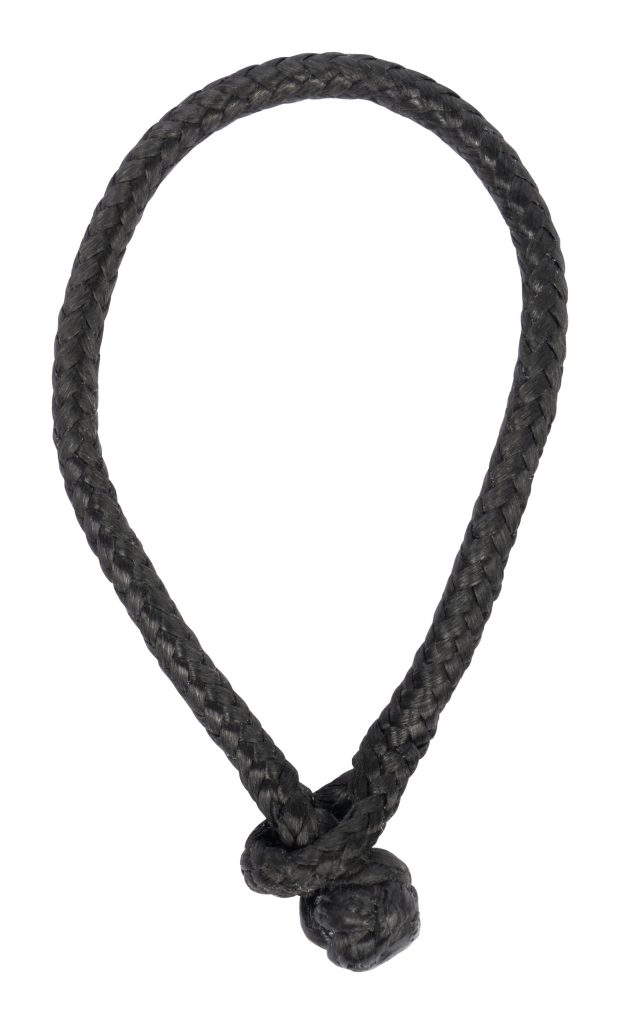

  • Compatible with accessory loops for remote reset and convenient device stowage
  • Works effectively in combination with piggyback systems and additional CAPTO devices

TECHNICAL INFORMATION

Learn more

omponents

  • Multi-functional rope grab with a force-limiting V-groove Cam

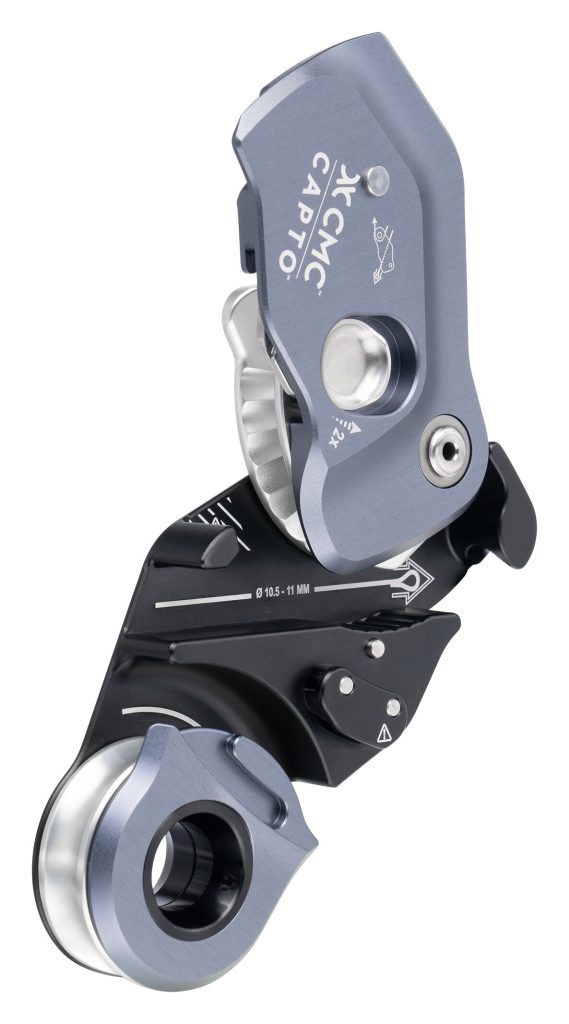

  • High-efficiency, 44.5 mm (1.75 in) diameter sheave pulley
  • Integrated becket independent from rope loading / unloading

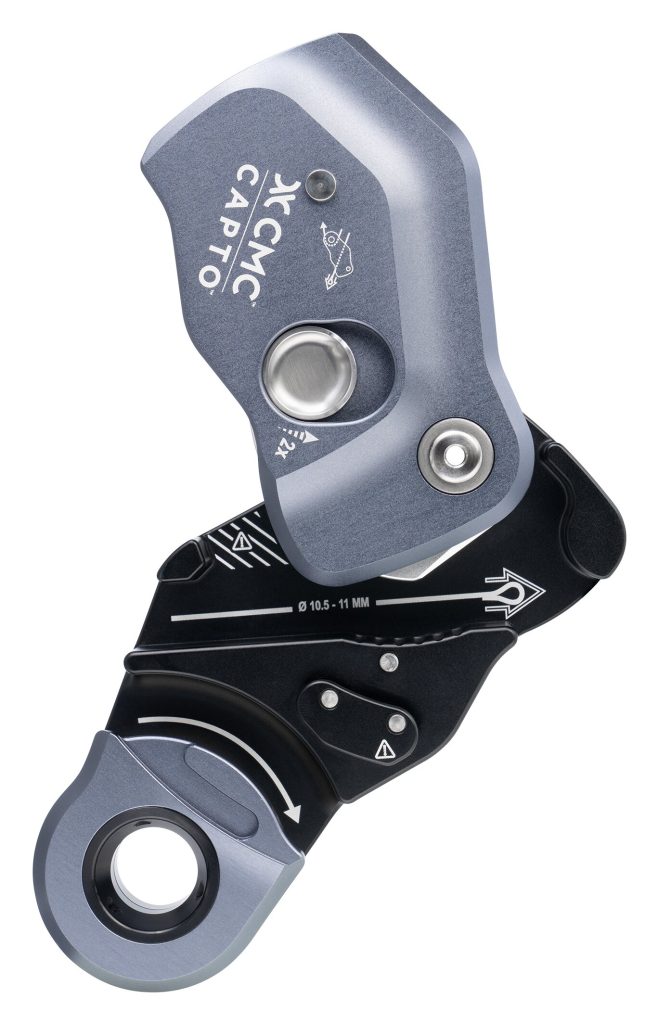

  • Moving sideplate with double-action release button
  • Hollow cam axle for accessory loop installation (3.9 mm diameter)
  • Ridged Cam Grip for one-handed device positioning

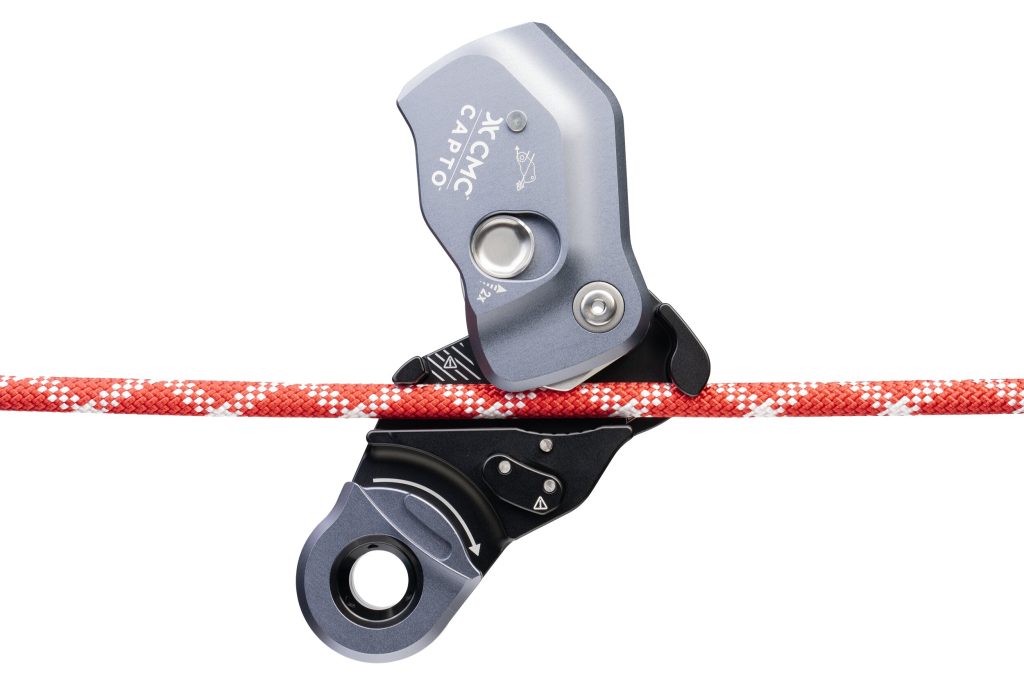

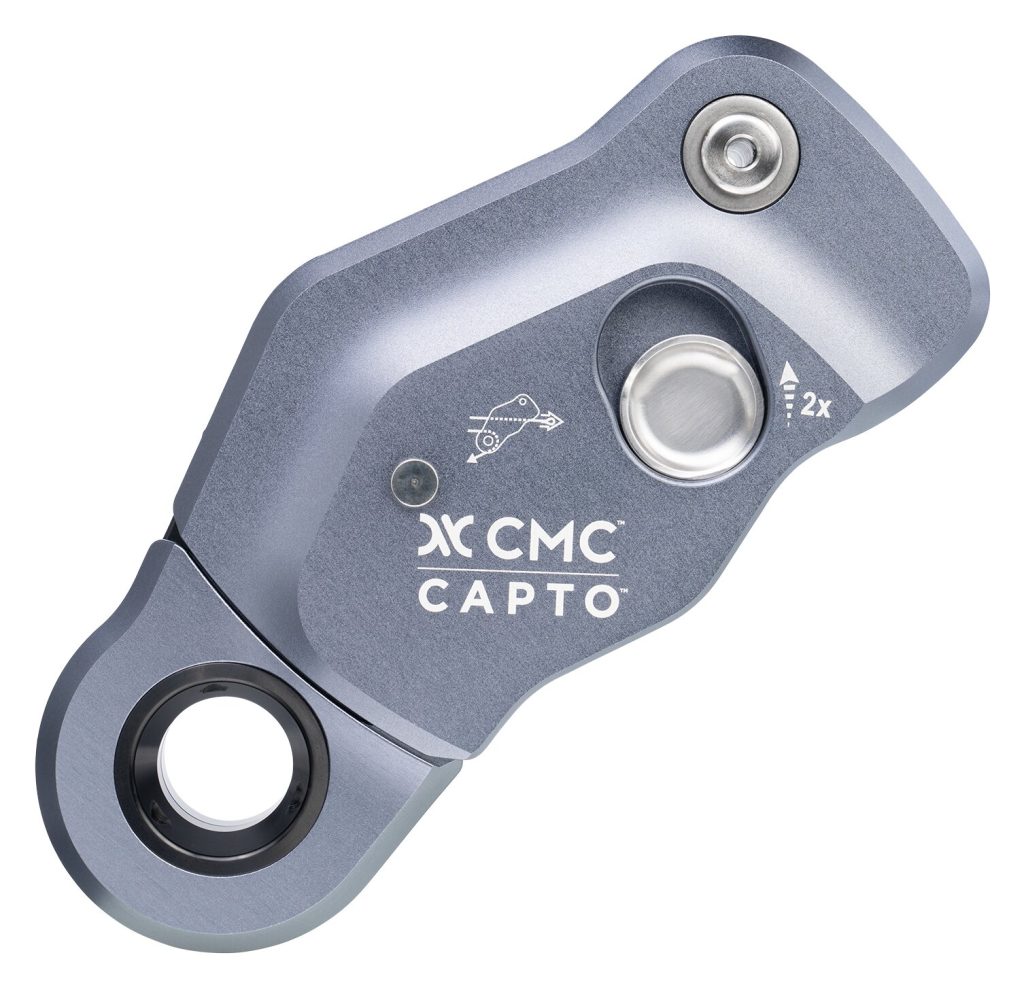

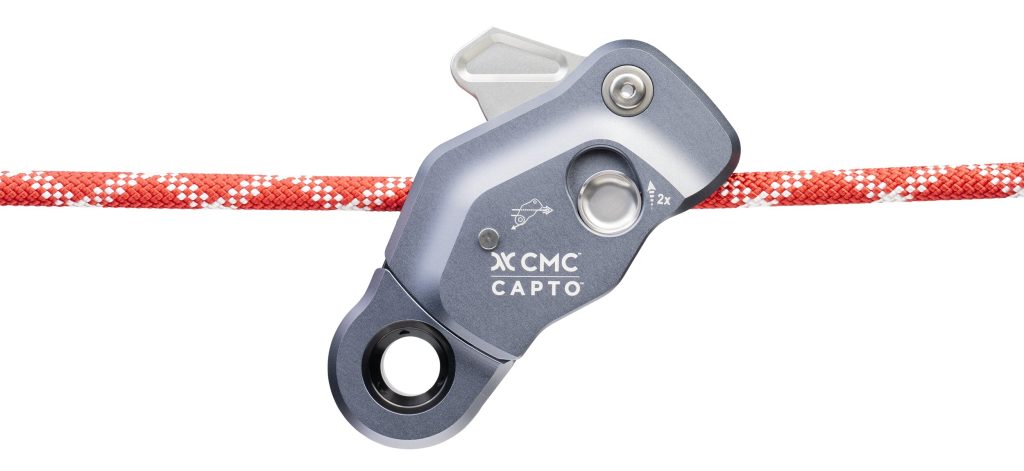

CAPTO 11 mm Gray

  • Item: 336011
  • Color: Gray
  • Rope Size: 10.5 – 11 mm
  • Weight: 513 g (1.13 lb)
  • Dimensions: 150 x 70 x 31 mm (5.92 x 2.75 x 1.23 in)
  • Minimum Breaking Strength (3 Sigma MBS) Pulley: 36 kN (8,093 lbf)
  • Certifications: NFPA General Use (G) Rope Grab & Pulley

EN 12841, EN 12278, EN 567

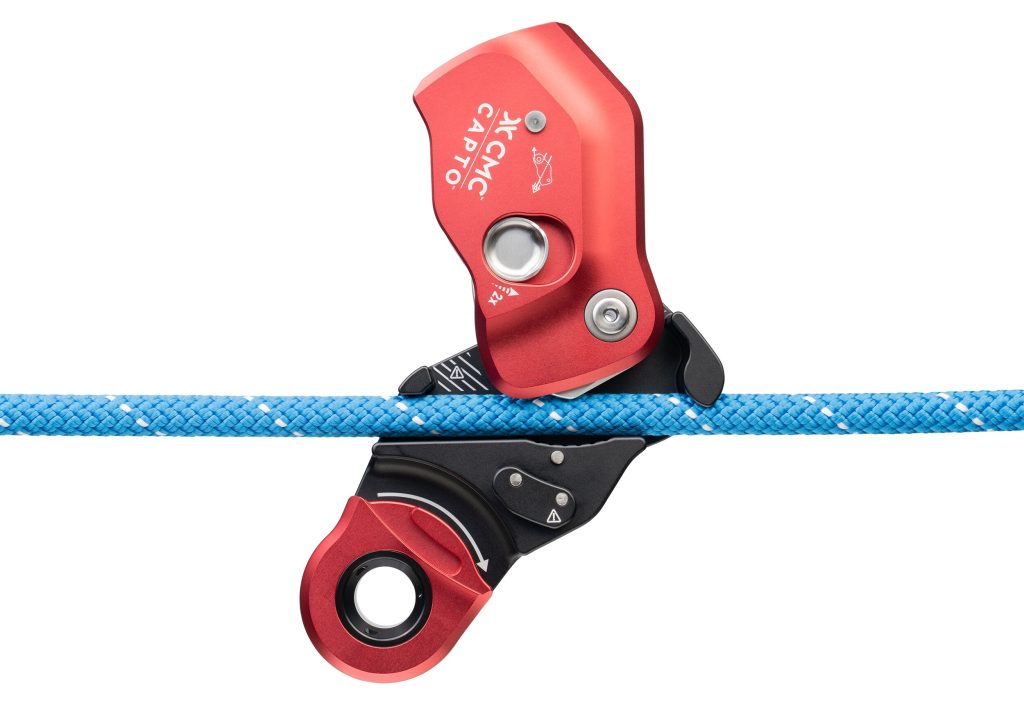

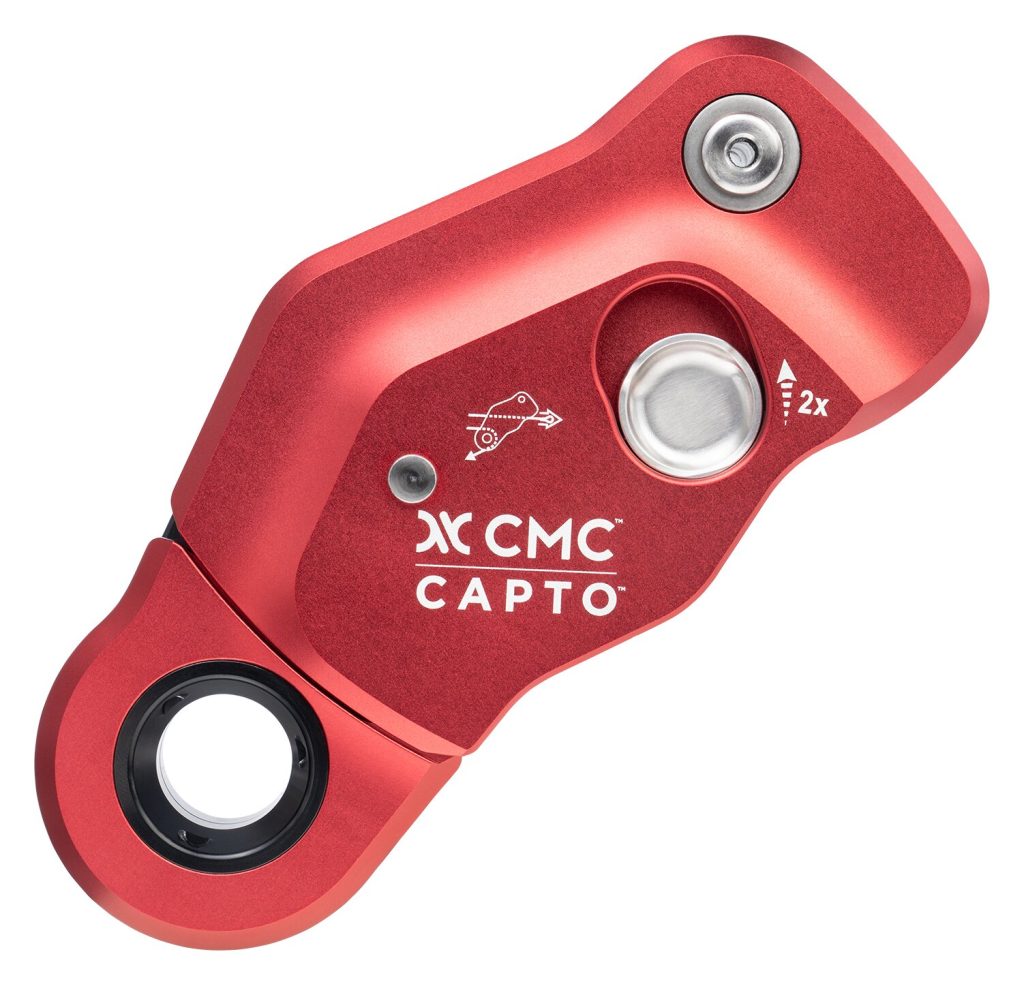

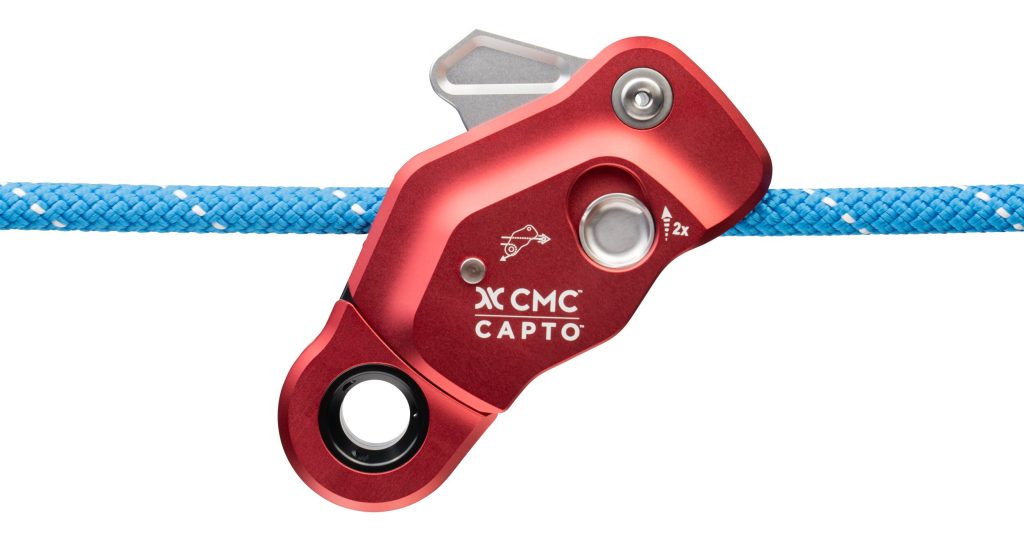

CAPTO 13 mm Red

  • Item: 336013
  • Color: Red
  • Rope Size: 12.5 – 13 mm
  • Weight: 513 g (1.13 lb)
  • Dimensions: 150 x 70 x 31 mm (5.92 x 2.75 x 1.23 in)
  • Minimum Breaking Strength (3 Sigma MBS) Pulley: 36 kN (8,093 lbf)
  • Certifications: NFPA General Use (G) Rope Grab & Pulley
