CMC
LINESCALE 3i+

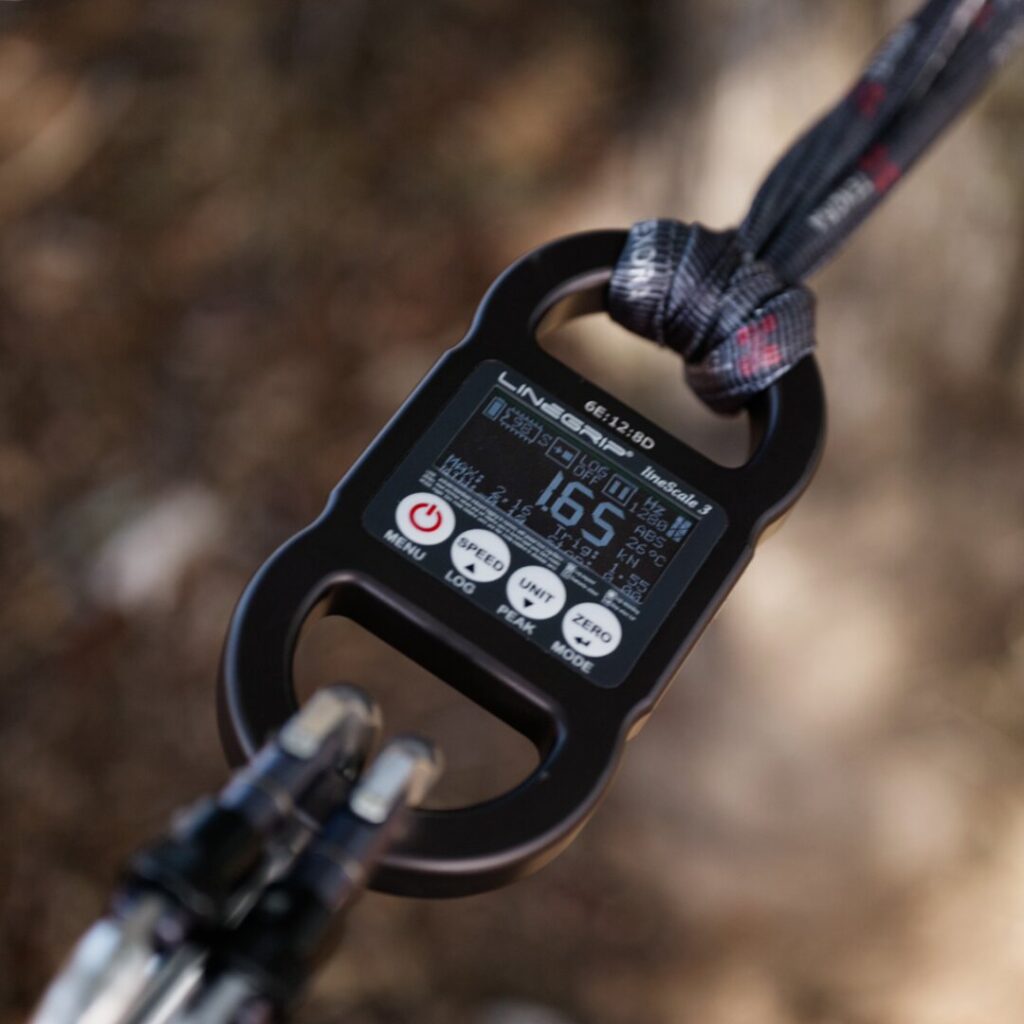

The CMC LineScale 3i+ is a high-strength, high-speed load cell designed to deliver accurate, real-time force measurement in rope systems. Used in rescue, rope access, and technical rigging applications, it allows teams to monitor loads during lifting, hauling, and dynamic events with precision and confidence.
Built for demanding environments, the LineScale 3i+ combines robust construction with advanced data capabilities. A clear digital display provides instant on-site readings, while Bluetooth connectivity enables remote monitoring and data logging via mobile app. This allows operators to analyse loads in real time or review performance after operations.
Beyond field use, it is also a powerful tool for testing and training, helping teams better understand system behaviour and improve rigging practices. Its versatility extends to a wide range of applications, including stage rigging, live events, and industrial monitoring.
Size available:
Webbing Connector:
Webbing Connector
Color:
GET A QUOTATION
- Milled aluminum construction with 90 kN minimum breaking strength (MBS) and PPE certification
- Designed for use as a single master point in rigging systems, including drop testing and twin tension rope systems (TTRS)
- High-speed data capture at 1,280 samples per second for precise measurement of dynamic loads
- Internal memory stores up to 50 hours of data and 230 million data points
- Bluetooth connectivity for remote monitoring and data transfer via mobile app
- Integrated digital display for real-time load readings in the field
- Supplied with a complete accessory kit including padded case, screen protectors, and USB connectors

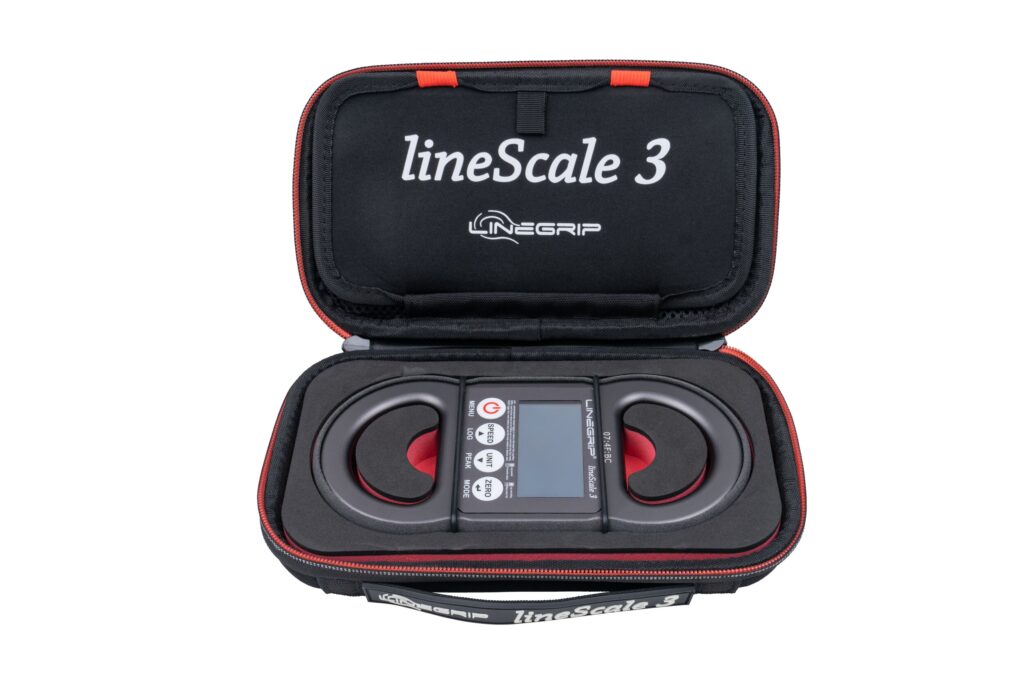

Comes Fully Equipped
- LineScale 3i+ Load Cell

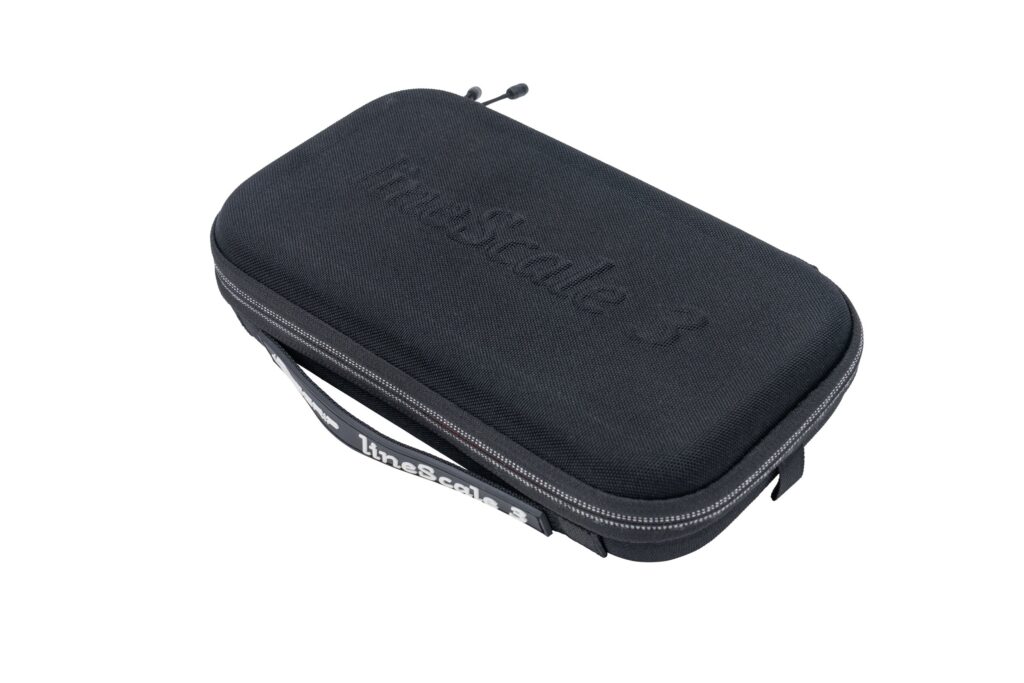

- EVA Hard Case w/ Padding
- Rubber Edge & Screen Protector
- Anti-Glare Screen Protector
- 4 gb Dual-USB Flash Drive
- 7 cm Micro-USB Adapter Cable
- Firmware Upgrade Dongle
- Quick Start Guide & Manual
Specifications
- Item: 300760
- Color: Gray
- Weight: 530 g (1.17 lb)
- Dimensions: 19 x 9 x 2 cm (7.5 x 3.5 x .8 in)
- Minimum Breaking Strength : 90 kN (20,232 lbf)
- Working Load Limit: 30 kN (6,744 lbf)
- Scan Rate (Onboard / USB): Fast: 1,280 Hz; Slow: 640 Hz
- Scan Rate (Bluetooth): Fast: 40 Hz; Slow: 10 Hz
- Measuring Accuracy : +/-0.75%; +/-0.5% at 3-15 kN
- Display Units : kgf / lbf / kN (Digit Height: 2 cm)
- Storage Capacity: 50 hrs of logs; 230 million data points
- Operating Endurance: 50+ hrs in powersave; 20 hrs Bluetooth
- Operating Temperature: 0-40 C (32-104 f); tested to -10 to 50 C
- Battery Type: 3.7V 1600 mAh Lithium Polymer
- Protection Class: IP68-0.1 (waterproof to 0.1 m for 1hr)
- Body Material: High strain aviation aluminum LY12CZ
- Load Eyes: 5.8 x 3.7 cm (R28 D-Shape)
