CMC

Swivo

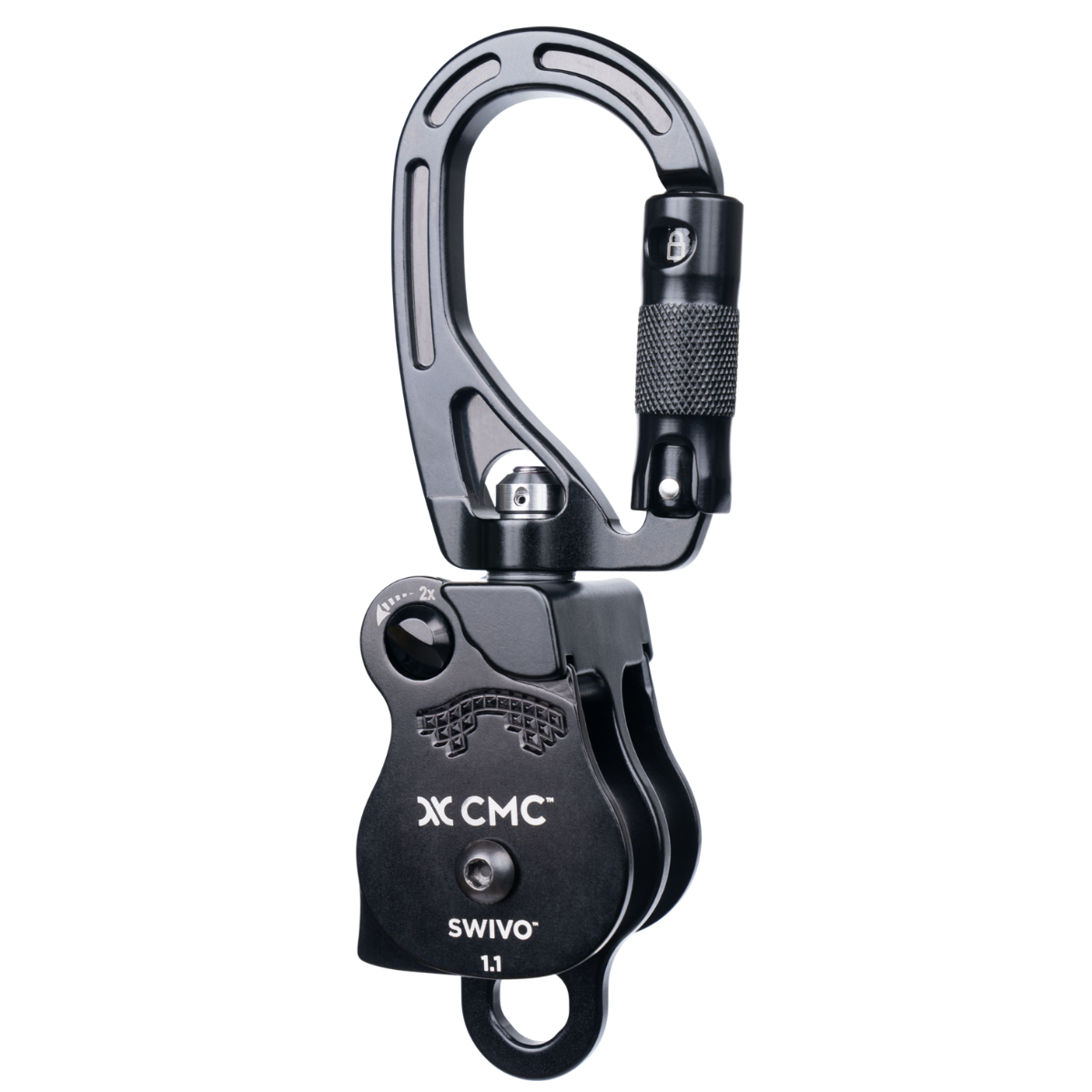

The CMC SWIVO is a compact, multi-functional device that combines a swivel, pulley, and carabiner into a single unit to simplify rope systems. Engineered for technical rescue and rope access, it enables smoother rigging and seamless transitions within complex setups. It is compatible with a wide range of connectors and configurations, including high anchors, tripods, and redirects.

‍

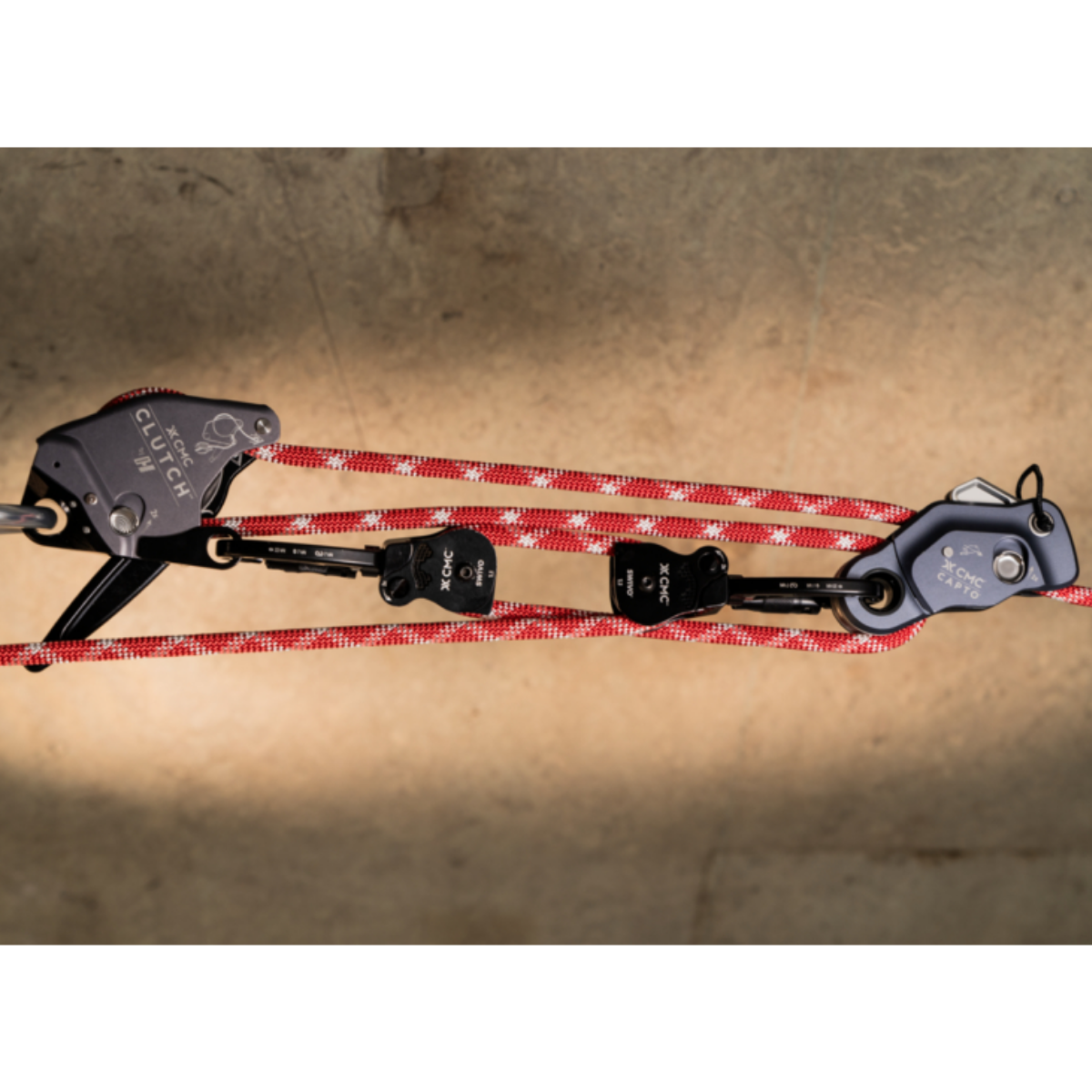

Particularly effective in mechanical advantage (M/A) systems, it enables efficient setups and, when paired with the CAPTO, allows rapid conversion from a 3:1 to a 5:1 for haul operations. Designed and manufactured in the USA, it is available in single sheave (NFPA / CE) and double sheave (NFPA) versions.

Size available:

No items found.

Webbing Connector:

Webbing Connector

No items found.

Color:

No items found.

GET A QUOTATION

FEATURES

Combines a swivel, pulley, and oval carabiner in a single device
Compact size reduces system length, allowing more travel
Connects easily to wide attachment points like the CAPTO becket
Oval frame improves load distribution and reduces binding
Simplifies M/A systems including a 5:1 with CAPTO and CLUTCH
Ergonomic design for clipping and loading with one hand
Pivoting sideplate allows rope loading without disconnecting
Double-action detent button prevents accidental opening
1.1” sheave is compact and lightweight for a range of applications
Sheave is mounted on sealed ball bearings for high efficiency
Rotating swivel aligns rope with the direction of pull
Prusik minding sideplate prevents entanglement
Double sheave pulley is equipped with integrated becket
Compatible with rope up to 13 mm (1/2 in)
Ideal for rescue, work at height, and tree care

TECHNICAL INFORMATION

Application areas: Confined Spaces, Rescue, Rope access
Sheave material: Aluminum
Color: Black
NFPA: T-rated
Minimum Breaking Strength (MBS): 23 kN (5,170 lbf)

SWIVO Single

Item: 300350
Pulley type: Single Sheave
Weight (single sheave): 209 g (.46 lb)
Height: 163 mm (6.4 in)
Width: 64 mm (2.5 in)
CE Certifications: EN 12278, EN 12275/B, EN 362/B

SWIVO Double

Item: 300352
Pulley type: Double Sheave
Weight: 308 g (.68 lb)
Sheave material: Aluminum
Height: 185 mm (7.3 in)
Width: 66 mm (2.6 in)
CE Certifications: N/A

‍

DOCUMENTS

CMC SWIVO Product Sheet

CMC SWIVO User Manual
